ALUMINIUM CHEQUER PLATE 1 BAR, 2 BAR, 3 BAR & 5 BAR - Platform flooring, stairs and walkways

Aluminum checker plate, also written as Aluminium Chequer Plate, is a special perforated aluminum sheet with raised patterns for excellent decorative and anti-slipping performances, ideal for safety tread, architectural and engineering structures. The chequered aluminum plate is easy to be pressure processed, extended and bent, and welded. Aluminum checker plates can be supplied in different forms of finished products including diamond plates, tread plates and stair treads.

Applications
Aluminium checker plates are commonly used as tread plates, flooring decks, anti-slippery floors, building materials, decorative or antiskid panels in vehicles or machines, stairs and walkways in industrial settings and transportation, also popular for decorative cladding and protecting of walls, ceilings, facades.

Aluminum material applied is mainly composed of aluminum, magnesium and silicon.
Aluminum chequered plates with distinct design and highly slip resistance can be easily configured into a variety of designs and patterns as per the client’s requirement.

Aluminum chequered plate is a product where quality and functionality meets beauty for decorative panels used in air-conditioning, packaging, electric products and etc.

Checkered patterns: one bar, two bar, 3 bars, 5 bar, diamond, embossed, decorative

Surface treatment: Mill finish, PE coated, mirror finished

Choosing Auminum Checker Plates - Various base materials and their major applications:
Base Material: Cold rolling aluminum coil and sheet
Grade: 1060, 1100, 3003, 3105, 5052, 5083, 5754, 6061, etc
Alloy Type: 1050/1060/1070/1100/1200/1350/3003/3004/3105/5005/5052/5754/5083
Thickness: 0.2--20.0mm
Roll Width: 500-1500mm
Temper: O/H12/H22/H14/H24/H16/H26/H18

1100 Aluminum Sheet: Low strength aluminum alloy has excellent corrosion resistance and satisfactory anodizing and conversion coating finishing characteristics. Unmatched workability by any other commercial aluminum alloy material. Readily to welding, brazing, and soldering. Machinability is poor and tends to be "gummy". Non-heat treatable. Typical applications include chemical storage, processing equipment, kitchen utensils, and general sheet metal work.

3003 Aluminum Sheet: Approx. 20% higher strength than the 1100 series, but retaining an excellent workability rating. May show some slight discoloration when anodized, but reacts well to mechanical and organic finishings. 3003 is easily welded and brazed, but solder is limited to the torch method. Like 1100, tends to be "gummy" when machined. Non-heat treatable. Typical applications include food and chemical equipment, appliance components, truck and trailer roofing, heat exchangers, and lawn furniture components.

5083 Aluminum Sheet: With excellent corrosion resistance and weldability, together with high strength, this alloy was designed for welded structures requiring maximum joint strength and efficiency. Can be anodized for increased corrosion resistance, but does not lend itself to decorative applications. Not meant to be a machining alloy, but can be machined fairly well with proper preparations. Because of its relatively high magnesium content, the workability rating would only be fair. Non-heat treatable. Typical applications include large marine craft, containers, railroad cars, structurals and elevator cars.

5454 Aluminum Sheet: Excellent corrosion resistance and, unlike the other magnesium alloys, it maintains that rating when functioning in the 150-300 degrees F range where the others would be prone to stress corrosion. Not a decorative alloy but well adapted to the applied finishing processes. High strength, excellent weldability, fair formability, and poor machinability.Non-heat treatable. Typical applications include dump bodies, exhaust stacks, marine components, and chemical handling vessels.

Checkering Style Illustration:

Stucco Checker Pattern	Five-bar Pattern	Two bar Pattern
One bar Pattern	Duett Pattern

As one of leading aluminium chequer plate suppliers, we offer them in a wide variety of sheet sizes and thicknesses.

We supply standard and customized aluminum checkered plates products

We provide aluminum checker plate in different sheet sizes of the 5 bar, 2 bar, and 1 bar with the following specifications:

2.5 , 3 , 4 and 5mm Aluminium Checkered Plates
Aluminum Checker Plate 5mm Thick.
Checker Aluminium Plate, 8 x 4 feet, thickness 3 MM, Two or Five bar design type.
Aluminium checker plate, 5 bar, 2 bar, and 1 bar for 2.5m thickness.

AA1060 H18 Aluminum Checked Sheets
Checkered aluminum plates, thickness of the plate (over plain) 5mm x 1000 x 2500mm.
Alternative size for same thickness available.
1mx2m thicknes 2mm to 3.5mm.
Sheet size 1219 x 2438 mm.

Aluminium Checkered Plates, Alloy AA3003, H-14 temper
With paper interleaf between all sheets
Size: 1220 mm x 2440 mm
Thickness:
1.4 mm
1.5 mm
1.8 mm
2.5 mm
2.8 mm
3.8 mm
5.8 mm

Aluminum Checkered Plate 6mm thick, in roll of plate
Aluminium checker plate (propeller) 3mm thick
680 X 680
1300 x 1120
1510 x 2130
1510 x 1065

Aluminium Tread Plate Grade 5251 “o” temper
Size: 3 x 1640 x 1720mm
47" x 104"
47" x 70"

One-bar Aluminium Checker Plate
Aluminum checkered plate with one bar 3mm 1000x2000mm
Aluminum chekered plate with one bar , 3mm1000x2000mm
One-bar aluminium checker plate 1000x2000mm with minimum thickness
Aluminum 5052 Grade Diamond Tread Plate for Pedestrians Walkways, One Bar Chequered.

Aluminium Checker Plate 6061-T6
Aluminum sheets of quintet 3 /3.5 mm thickness, 13400 x 2440 mm (L x W)
4’ x 8’ Aluminum CHECKER PLATE
Aluminum checker plate with size of 33" x 55.25" x ¼"
Aluminum checkered plates Q-068, plain plates grade 6061-T6

Aluminium Checkers Plate and Circle
Aluminium Checkered plate 3mm thickness, sheet sizes 6x4', 7x4' , 8x4' and 7x5' , 8x5'.
Circle for Aluminium 1.2mm x 590, 620, 680mm and 1.3mm x 700mm.
Checkered aluminum sheet plates size 1.5M CX 3M X 3MM TH

Aluminium Checker Plate A-1100 H-14 5-BAR
Width: 3FT
Length: 12FT
Thickness : 0.50 MM, 0.60 MM, 0.80 MM
Alloy : A 1100 H14

Aluminum Checkered Plate, Grade 5052
Checkered plate 6.4 x 1220 x 2440mm
Chequered plate 4M x 2M x 9.6 mm thick
400 mm x 9.6 thick x 6 M chequered plates.
4’x8’ x 6 mm plate, or 220 x 6 mm flat bar x 6M long.
4’x8’ x 8 mm plate / 220 x 8 mm flat bar x 6M long.
Aluminum angle - 3" x 3" (76 x 76mm) Grade 5052.

Aluminum Embossed (Checker) Plate S 275 JR
Sheet size: 8' -6" in length and 6" wide.
Material: Embossed (Checker) Plates
Quality: S 275 JR
Dimension: 8/9 50 mm 1250 x 2500

¼"thick Aluminum Checker Plate for Platform Flooring
Sheet size 3’0" x 24’0"
Aluminium plain plate 2440x1220x4mm.

Aluminium Chequer Plates 5754 H114 TEMPERED
Material: 5754 H114 Tempered
Design: 5 bar
2500 x 1250 x 3mm on the plain.
2500 x 1500 x 4.5mm on the plain
2500 x 1250 x 6mm on the plain
3000 x 1500 x 3mm on the plain
3000 x 1500 x 4.5mm on the plain

Marine Quality Aluminium Chequered
4x1250x2500 mm
Marine Quality Aluminum Alloy Chequered Plates manufactured according to specification 5086 - H32 suitable for MIG welding process.



Photoes with Different Designs

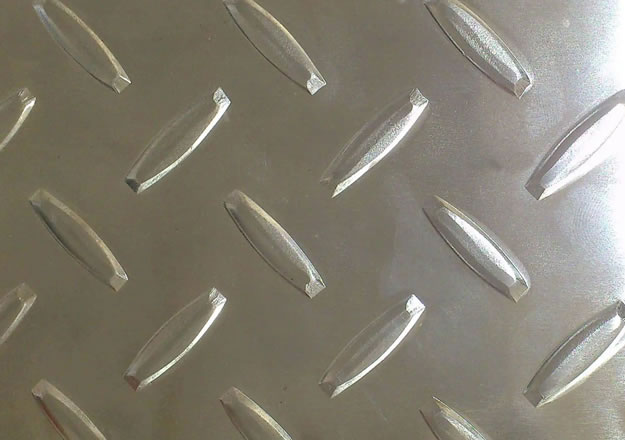

One bar aluminum checker plate

One bar chequered aluminum sheet size 5'x10' thickness 2 mm (not including checker height)

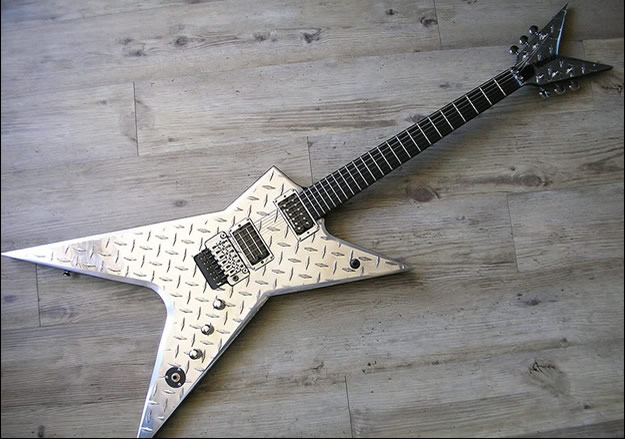

1 bar checkered aluminum plate, 5052 and other aluminum alloy grade used for decorative covering panels

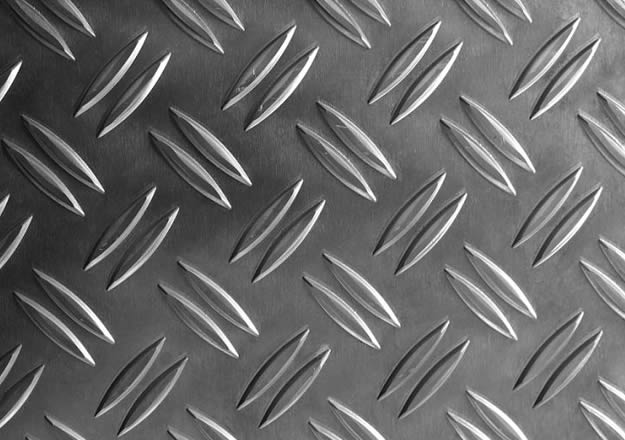

2 bar aluminum checker plate

Checkered Aluminium Plate, sheet size 8 x 4 feet, thickness 3mm, two bar design

3 bar aluminium checker plate sheet

6061 Aluminium Checker Plate, sheet size 2440x1220x4mm, three bar design

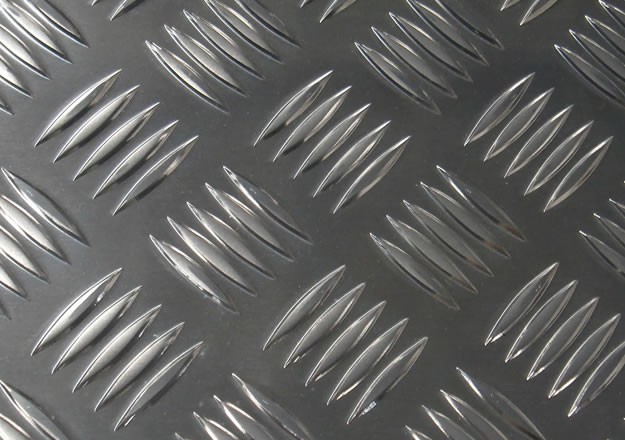

5 bar aluminum checker plate

Aluminum Checkered Plates 5 tears drop
Grade: Alloy 5754 H114
Size: 4mm x 1500mm x 3000mm

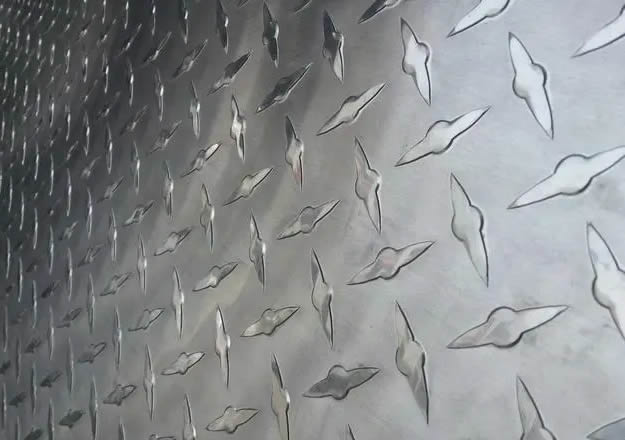

Aluminium checkered plate, diamond pattern

Embossed Aluminium Chequer Plates 3003 Grade, Diamond Plate
Material: 3003 Alum
Pattern: diamond
