Aluminum Perforated sheet, Aluminium Perforated Plate FLOORING, Aluminum cladding panels, ceiling panels

Aluminum Perforated Plate is a light metal sheet with high performance easy to fabricate and punched into round hole, slot and ornamental patterns, ideal material in the manufacture of perforated metal screen.

Material Grade: Aluminum and aluminum alloy
Plate thickness: 1mm to 6mm
Plate width: 2200mm max.
Finish: Natural aluminum, powder coated into colors.

Aluminum perforated plate is lighter than both steel and stainless-steel perforated plate, while offering good corrosion resistance, weldability, and formability.
Aluminum perforated plate comes in several sizes. The most commonly used is a staggered hole pattern which comes in full and cut sheet sizes ready to go.

How to Make Aluminum Perforated Plates:
Process cycle:
First step: Alu sheet is fed to the machine by means of a Roller System Mechanism while the die is preloaded on the machine.
Second step: On feeding the sheet, the upper section of the machine starts stroking.
Third step: The aluminum sheet is perforated as per the die pattern and is moved forward by the the perforated pitch setting on the machine, with the next stroke of the slide.
This cycle of feeding sheet material to be perforated and perforating is repeated automatically.

Aluminum Perforated Plates are popularly used in these Major Applications:
- Mining
- Chemistry
- Agriculture
- Architecture
- Air and Oil Filters
- Screening process for Grain
- Test sieving
- Drying
- Furniture
- Tread plate floor and walkway ramp

We offer standard and customized aluminum perforated products for our customers

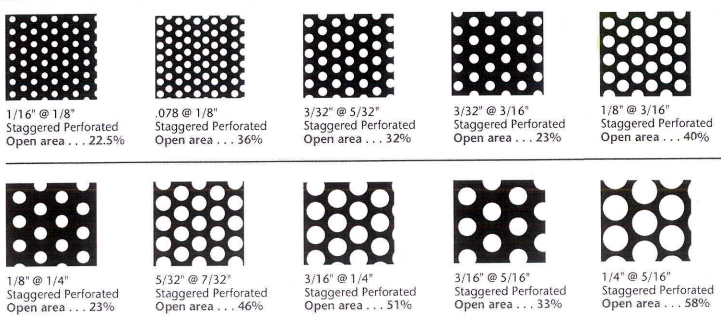

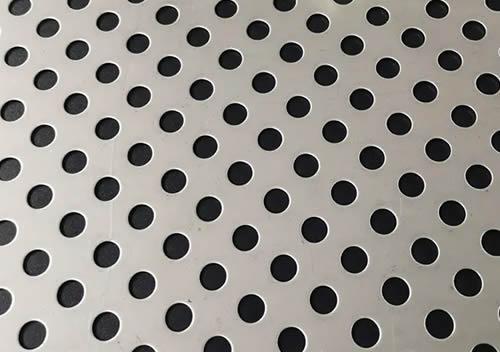

Round Hole Perforated Metal Sheets

Slotted Perforated Sheet
Material: Aluminum
1/8 thick x ¼ wide x 1” long slotted - 48 x 49
1/8 thick x 3/32 perforated plate – 48 x 73
1/8 thick x 1/8 wide x 1” long slotted – 48 x 73
1/8 thick x 1/8 wide x 1” long slotted – 45.5 x 73

Aluminum Diamond Plate
Alu diamond plate for car hauler and cargo trailer

5' X 6' aluminum perforated plate for walkway ramp

Aluminum perforated plate POWDER COATED
Powder coated aluminium perforated panel
3mm thick sheet, 8mm holes, 14mm center to center
1m x 1m x 1.2mm thickness, 1/8”@3/16”

Aluminum Tread Plate
Perforated plates for non-slip stair treads
Tread Plate .065 thick perforated with .250 hole diam. 1.250 on center straight holes. sheet 48” x 96” available.

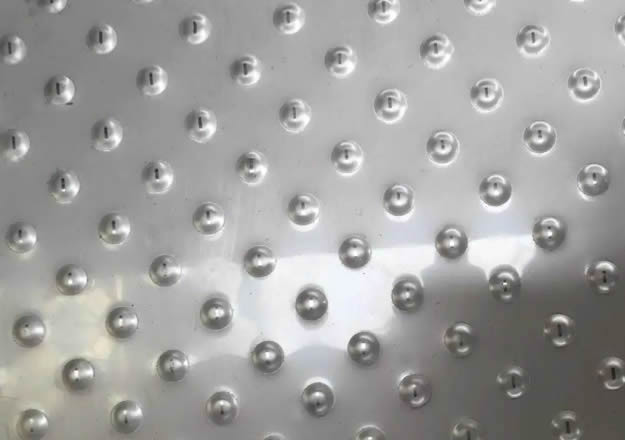

A5052 Tread Plate
Material grade: A5052
Thickness 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.5mm, 6.0mm.
Plate size 1250*2500
Bar height 1.5mm
Non gloss

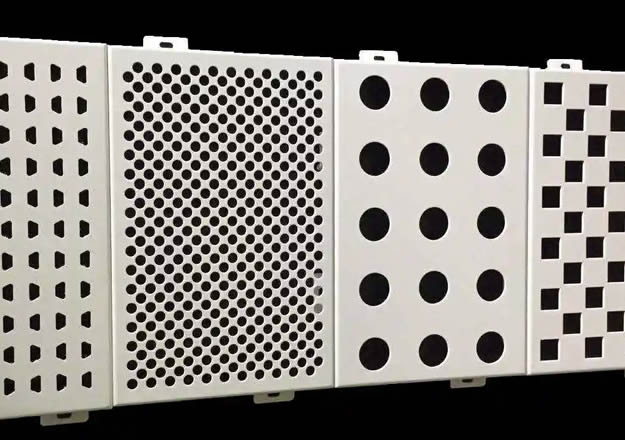

Aluminum Perforated Architectural Mesh Panels

Perforated aluminum sheet for exterior and interior wall, sound insulation wall panels

Round hole perforated aluminum plate for ceiling and various archtiectural uses.

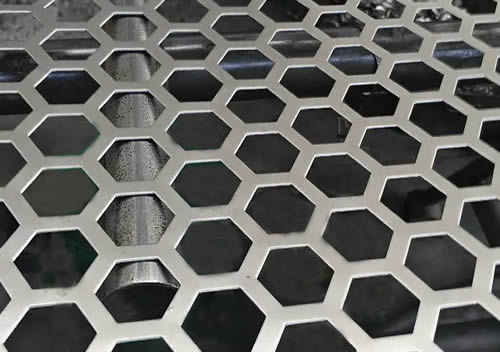

Hexagonal hole perforated aluminum for facade cladding panels

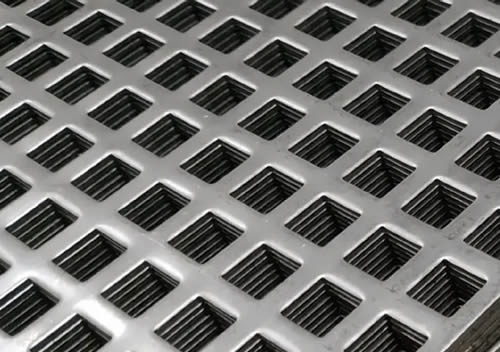

Square hole aluminum perforated plate

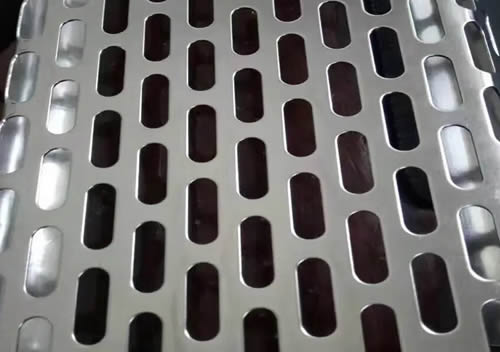

Oval hole perforated metal mesh plate
