prime stainless steel checker plate AISI 304, 316, Low colbalt ss, One bar,two bar, three bar, FIvE-BAR

Stainless Steel Checker Plate is also written as Stainless Steel Checkered Plate, made of hot rolling stainless steel sheet, offering excellent physical and chemical properties, slippery resistance and a sense of modern decoration effect. Stainless steel checkered plates and sheets are ideal for equipment, catwalks, floor, ramps, stair and walkways as well as architectural designs.

Checkered Patterns: One bar, durbar, three bar, five bar, diamond, etc.



Our standard and customized stainless steel chequered plates

SS checker plates are commonly made of SUS 304, 304L, 316 and 316L material types, also low colbalt stainless steel and 430 materials.

304 Grade Stainless Steel Checker Plate
5mm stainless steel chequer plate sheet
Cut plates: 40" x 40"

5 bar AISI304 stainless steel checkered plate
Sheet size 1,250 x 2,500 x 3 mm.

Checkered Plate SS304
10mm x 1220MM W x 2440mm L

Stainless Steel Checker Plate SUS304
4.5mm*1219*2438
Destination: Japan

Stainless steel checker plate 304L.
Cut plate size: 1/5*3*.004

SS 304 Chequered Plate
Size: 2500MM x 1250MM x 6MM
Deviation to the extent of +1.14 mm &-0.25 mm in thickness

AISI 304 hot-rolled checkered plates
3x1250x2500
4x1250x2500
Checkered ss plates with different embossed images

6/5mm tear drop pattern plate in AISI 304
Sheet size:
5mm x 1219mm x 5800mm
5mm x 1500mm x 3000mm

AISI 304 Checker Plate
Plate AISI 304 Checker (flat bottom)
3 x 1000 x 3000MM

2 bars Stainless Steel Diamond Plate
Stainless steel checker plate 3mm thick for architectural wall lining
Sheet size:1600 mm High
Material 304

Stainless steel chequered cut plate
Sheet size 4 to 4.5mm x 36" x 80"
Material Garde-304.
For wall protection

AISI 316L Grade Stainless Steel Checker Plate Sheet
Press type
Sheet size: 3.5mm x 1219mm x 2438mm
Prime stainless steel checker plate sheet AISI 316L
3.0mm x 1219mm x 2438mm

316 Stainless Steel Chequer Plate
Material 316 or 316L
Thickness: 8 mm
Sheet size: 6 m x 2 m

Low Cobalt Stainless Steel Checker Plate
Stainless Steel Plate SS 304L EN 10088 1.4307
Equivalent to ASTM A240 304L
With chemical impurities limitation as Cobalt (Co) – max 0.050 wt. %, Niobium (Nb) – max 0.10 wt. %, Tantalum (Ta) – max 0.01 wt. % of different thickness of plate.
Sheet thickness: 2 mm, 5 mm, 20 mm
The standard sheet / plate: 4 feet by 8 feet while a variety of sheet sizes available to meet various applications.

430 Stainless Steel Sheet Plates
Thickness 0.5 mm, 0.7 mm, 0.8 mm, 1mm, 1.2 mm, 1.5mm, 2mm
Surface: 2B (Cold rolled flat Steel) and Grindling and pvc.
Sheet plates dimensions:
1000x2000 mm, 1250x2500 mm, 1500x3000 mm

Products Photos

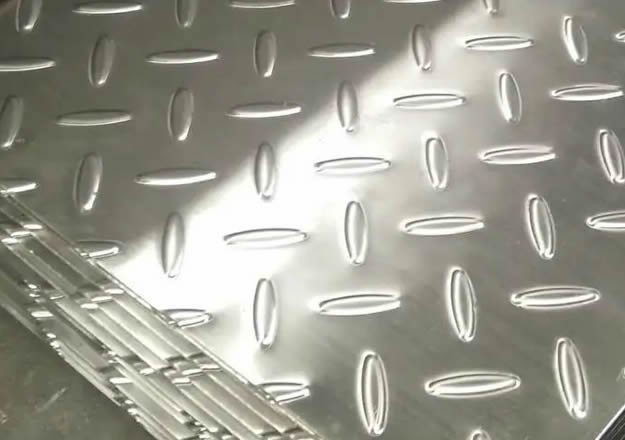

Stainless steel chequer plate AISI 304 type one bar design

Bean-shaped stainless steel checker plate 2.5m x 1.5m x 4mm thick

Checkered Plate SS316L - Tread Plate

Standard checkered plate, one bar, diamond pattern, sized for steel flooring
