checkered steel plates with rhombic shapes on the sheet surface

Checkered steel plate, also known as chequered steel plate, is the steel plate corrugated with rhombic pattern on the surface. The rhombic pattern can be of a single diamond, lentil or round bean shape, functions as antiskid and decoration purpose.

Rhombic checkered steel plates have good strength which can be used as floor panel, factory stair panel, deck board and car boards, wall panels. Checkered steel plates are supplied in a variety of plate thickness ranging from 2.5mm to 8mm.

Steel materials are commonly of #1-#3 carbon steels, the chemical composition applies to GB700 carbon construction steel certificate.

We supply hot rolled steel checkered plates and coils with rhombic (teardrop) shapes on the sheet surface, according to Spec. ASTM 36, including Standards; ASTM, ANSI and etc.

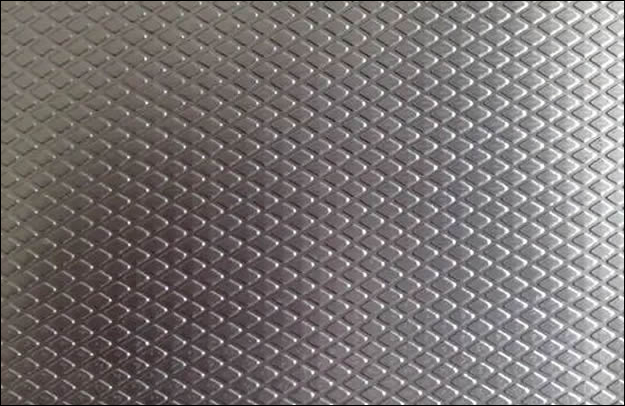

Steel Plates with Rhombic Corrugation
Material standard: S275JR EN10025
Plate thickness in mm: 2, 3, 4, 5, 6, 8, 9, 10, 12, 14, 16, 18, 20, 22, 24, 25, 30, 40.
Plate size: width x length:
1500х6000mm
2000х6000mm
2000х12000mm

Laser Cut Checker Plates

Mattress S 235 JR (R St37.2) EN 10025-2 (DIN 59220), 1.700 mm x 203 mm + 1 mm x 8 / 10 mm

Steel sheets with rhombic design with 6x12 mm size of the openings, flat sheets, not rolls.

Hot Rolled Steel Checkered Coils with Rhombic Shapes
Standard: Spec. ASTM 36, ASTM, ANSI
Surface shape: Teardrop + Rhombus
Size 1.60 mm Width 1000 mm
Size 1.80 mm Width 1000 mm
Size 1.60 mm Width 1219 mm
Size 1.80 mm Width 1219 mm

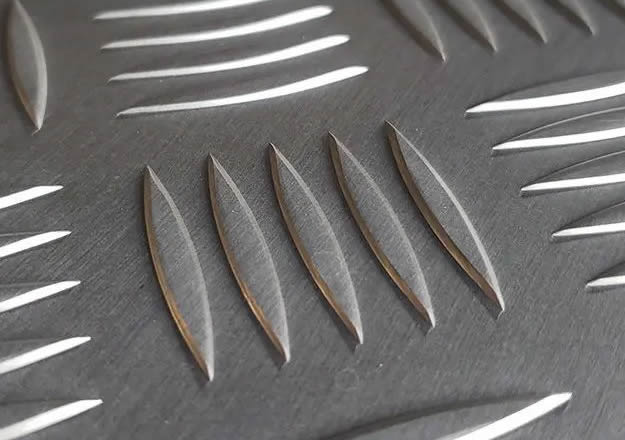

5 bars steel checkered plates HDG

Non-slip carbon steel checker plate with one side flat and one side convex, for walking platform suspended on steel beams 11’ apart.

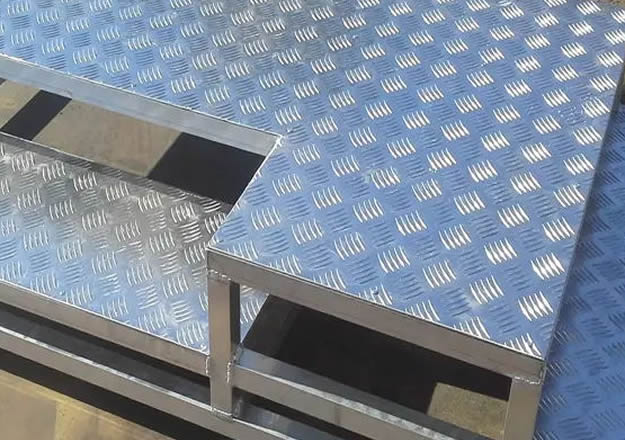

Hot rolled steel checker plate for step ladder, machinery equipment flooring

Checkering Pattern: One bar, two bar, three bar, five bar, diamond or rhombic, embossing.

Patterns Illustration:

One bar


Two bar


Fiver bar
