Expanded metal Mesh Plates, Expanded Foil in Copper and Aluminum - Steel Expanded Metal Sheet - Metal Screen
Expanded metal plate is a whole-piece sheet type mesh processed with expanding and stretching of the metal sheets into different opening designs. Expanded aluminum and steel mesh sheets are mainly used for wall platering in buildings and construction, fabrication of equipments parts, fencing for highway, railway and residences. Heavy expanded metal sheet can be used as step mesh of oil tanks and other platform flooring decks.
Common Specifications:
SWD:2.5-80mm
Thickness:0.5-8mm
Strand width:0.5-10mm

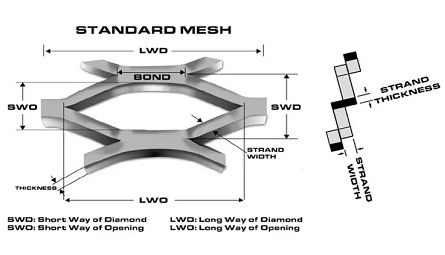

SWM: Center from node to node of the length of the short diagonal.
LWM: Center from node to node of the length of the long diagonal.
SWD: The length of the short diagonal of the hole.
LWD: The length of the long diagonal of the hole.
Strand: Stem length of the metal plate
Bond: Two-node connections.
Surface treatment:
PVC coated, Galvanized, Epoxy resin coated, anodic oxidation, anti-rusts.
Materials to be expanded: Galvanized plates, aluminum alloy plates, stainless steel plates, aluminium plates, carbon steel plates, brass plates, nickel plates, titanium plates.
Finish: Non galvanized, galvanized, color powder coated.
Powdered coated expanded metal
can be coated into green, white, black, red and blue.
Aluminum expanded sheet is a piece of aluminum plate cut and stretched into a diamond-hole mesh sheet.
Hole Shape: Diamond, hexagon, special shape
Plate thickness: 0.3-2.0mm
Plate size: 1000x2000mm,1219x2438mm,1219x3048mm or custom
Applications:
Heavy type expanded steel plates mainly serve as working platform, corridor and walking stair for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships.
Light type expanded mesh sheet is used as plaster mesh in buildings.
Galvanized expanded metal can be used for making
air and grease filters.
Powder coated expanded metal mesh flat sheets are mainly used for partition and fencing.
Aluminum and stainless steel expanded metal plates are mainly used for architectural facade decoration, wall cladding, shading curtains.

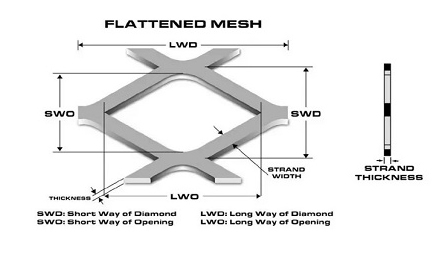

Standard Expanded Metal Plate or Flattended
Standard expanded plate is cold rolled, leaving a flat, smooth surface. Flattened expanded metal sheet is about 5% lighter than standard expanded sheet.
standard and Customized expanded metal sheets products we supply

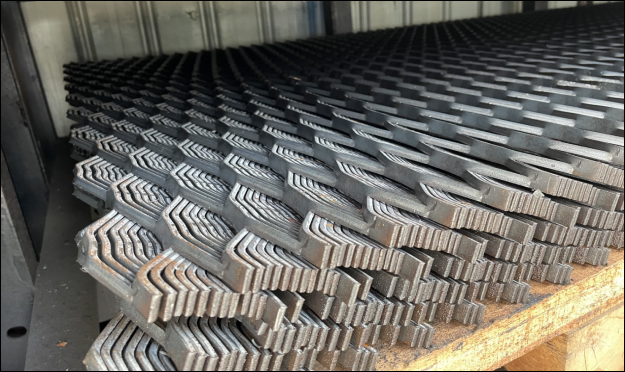

Steel Bleaching Plate ( Expanded Metal)
Steel Bleaching Plate 4' x 8', more size : 914 x 1829mm - 1219 x 2438mm, material: steel, surface : Galvanized or ungalvanized.
Steel Bleaching Plate Detail Specification
Stainless Steel Expanded Mesh
Expanded Metal Screen in Stainless Steel Plate- Grade:316L
LWD: 80mm
SWD: 15mm
Thickness: various
Strand width : 10mm
Expanded Foil Mesh (Flattended Mesh)
Micron mesh
Pattern: Diamond
Material: Aluminum, copper, nickel, others.
Expanded Mesh Screen, Standard Rhombic Opening
Material: Stainless steel . 10' x 3'
Mesh: Rhombic
Diamond Plate Expanded Metal

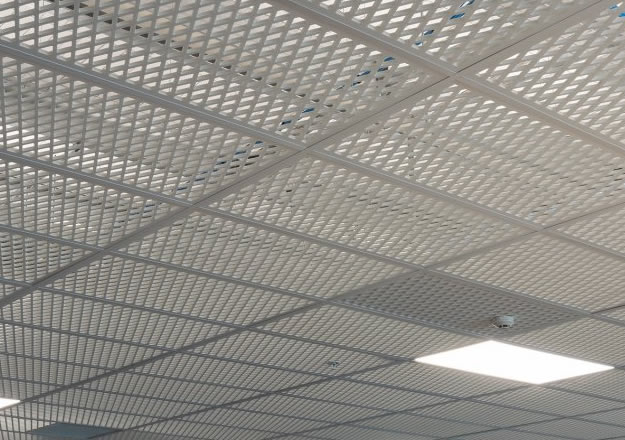

Aluminum expanded mesh plate, sound-absorbing sheet ceiling
Expanded Galvanized Sheet Plate

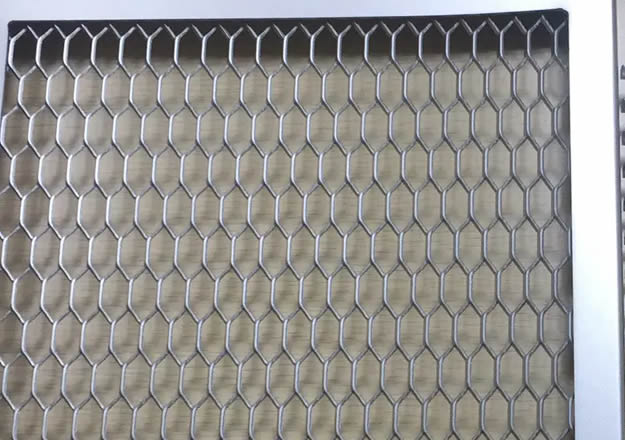

Hexagonal stretch plate, 4 mm metal mesh, of Grade 1023 Carbon Steel Hot Dip Galvanized

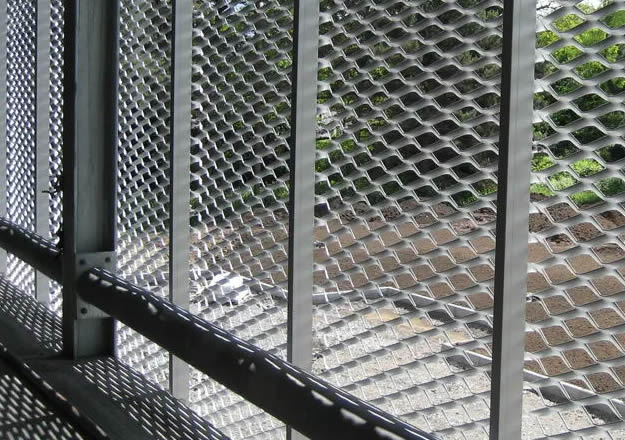

Decorative expanded plate partition, 12 mm # 20 Expanded Metal, Flattened, Grade ASTM A36

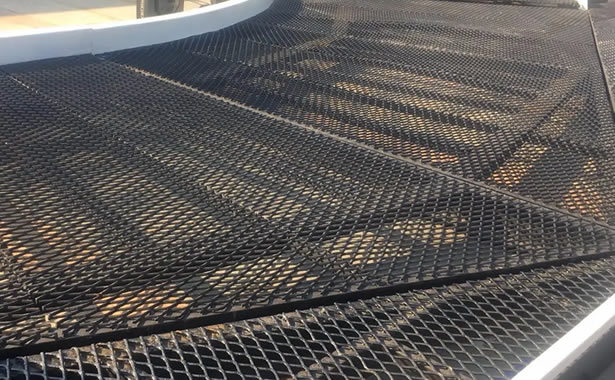

Expanded steel panels for safety and tread panels
