checkered plate Products - aluminum alloy, stainless steel, galvanized steel - floor panels, anti-skidding stair treads, walkways

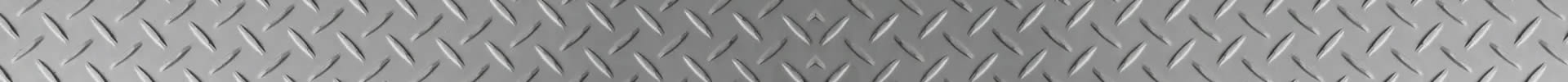

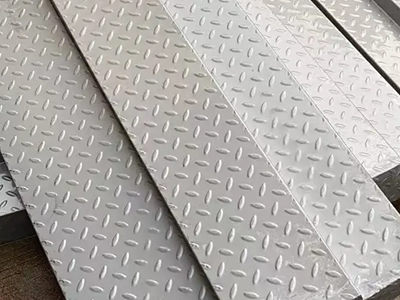

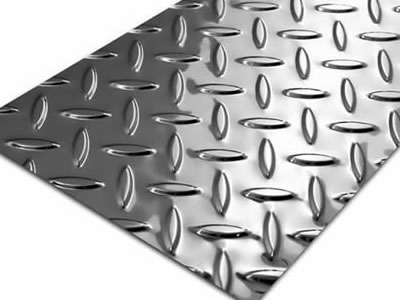

Checkered Plate, also known as Chequer Plate or Tread Plate, is a type of metal sheet with a regular pattern of raised diamonds / rhombus or raised lines on one side, with the opposite side being blank and flat. The texture on the checker metal sheet provides traction on the surface, which makes it ideal for no-slip walkways, ramps and stairs.

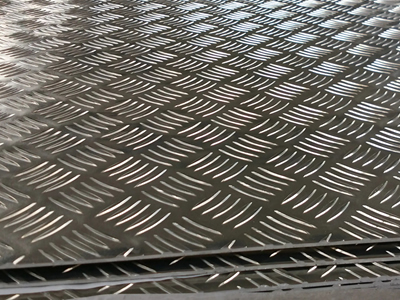

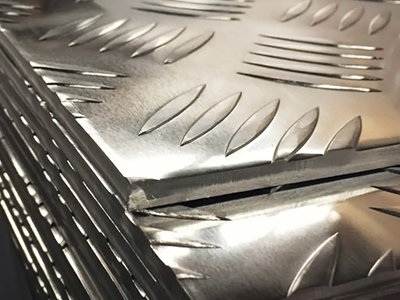

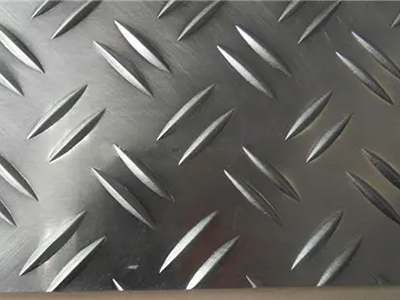

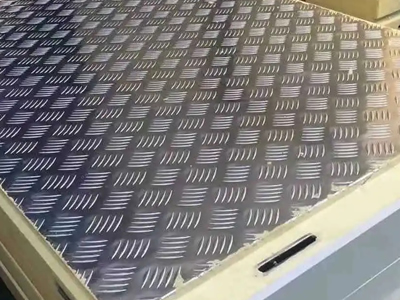

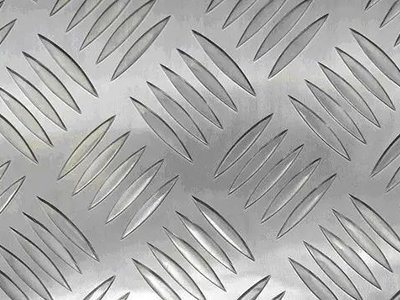

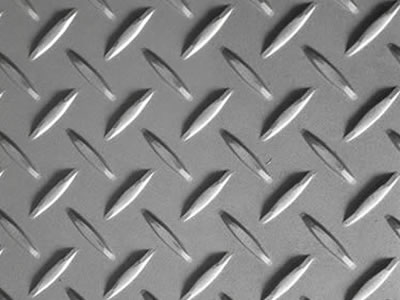

Checker plates are made of different materials including aluminum alloy, stainless steel, mild steel and galvanized steel. The chequer and embossed patterns are different shape, and the theoretical weight per square meter is also different.

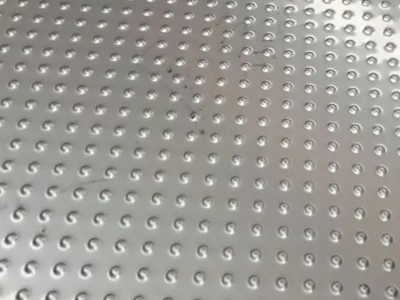

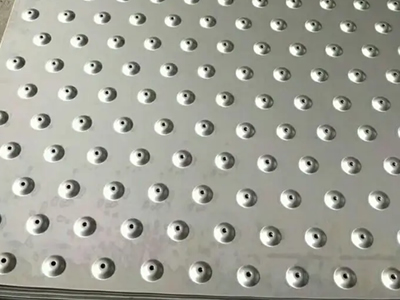

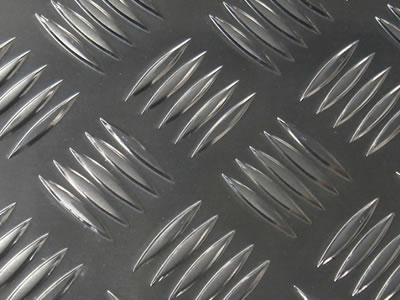

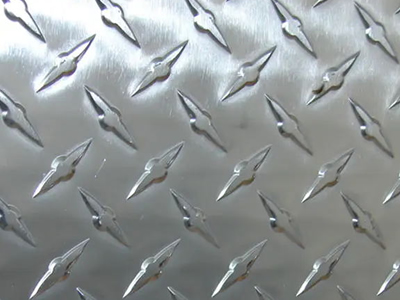

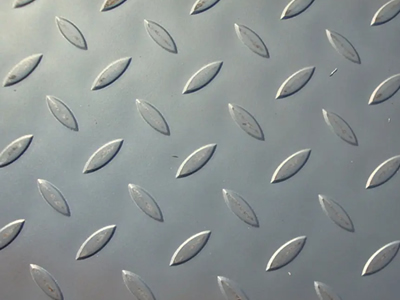

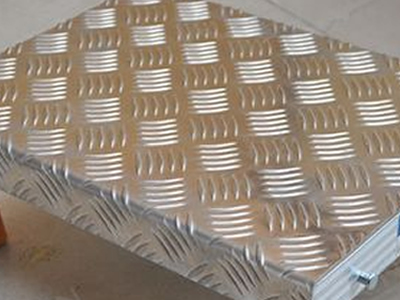

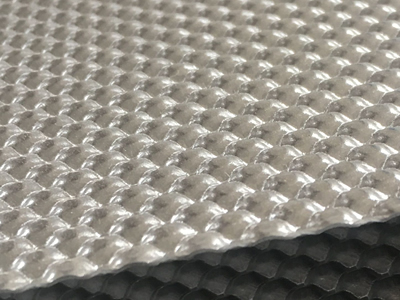

Checkered plate patterns are lentil-shaped, diamond-shaped, round bean-shaped, and mixed shapes. The bar numbers are 1 bar, 2 bar, 3 bar, 5 bar or 6 bar chequered mostly for anti skidding surface.

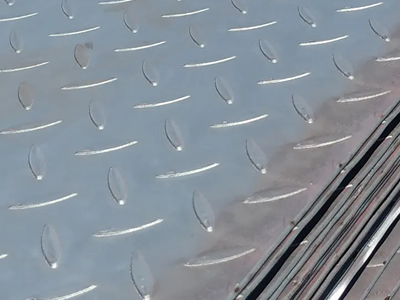

Checkered steel plates are measured and represented by plate thickness, and thickness varies from 2.5mm to 8mm, the common sheet sizes are 1250mm and 1500mm. Chequer plates users usually do not have high requirements on the mechanical properties and mechanical properties. Checkered steel plate width ranges from 600-1800mm, graded by 50mm, the length ranges commonly from 2000mm to 12000mm, graded by 100mm. The height of chequer is min. 0.2 times the thickness of the substrate.

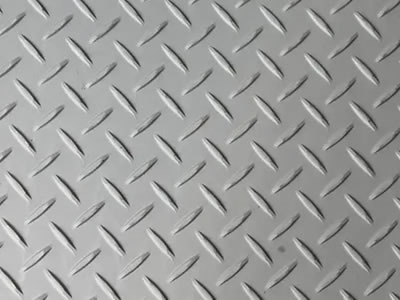

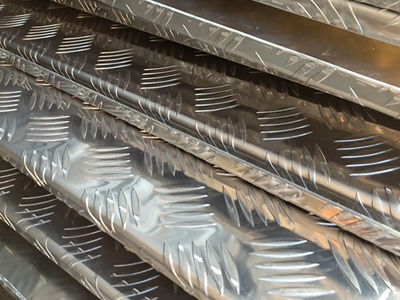

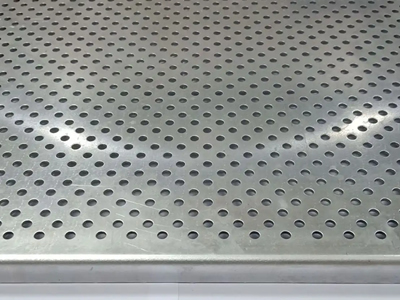

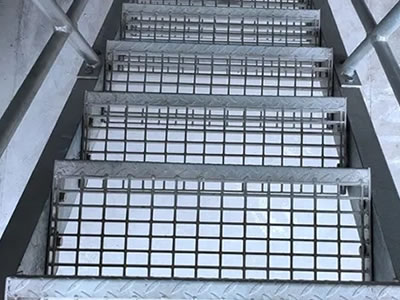

Metal chequer plate has many advantages such as decorative appearance, anti-skid property, economic cost and easy for fabrication. Chequererd and perforated metal plates are widely used in transportation, construction, decoration, machinery, shipbuilding as floor panels, anti-skidding stair treads, ramps, deck floor, walkways and a wide range of other uses.
Checkered Plate Weight Table Reference (mm)
| Basic thickness | Basic thickness allowable deviation | Quality weight (kg/m2) | ||
| Diamond pattern | Bean pattern | Round bean pattern | ||
| 2.5 | ±0.3 | 21.6 | 21.3 | 21.1 |
| 3.0 | ±0．3 | 25.6 | 24.4 | 24.3 |
| 3.5 | 土0.3 | 29.5 | 28.4 | 28.3 |
| 4.0 | ±0．4 | 33.4 | 32.4 | 32.3 |
| 4.5 | ±0．4 | 38.6 | 38.3 | 36.2 |
| 5.0 | +0．4 | 42.3 | 40.5 | 40.2 |
| -0．5 | ||||
| 5.5 | +0．4 | 46.2 | 44.3 | 44.1 |
| -0．5 | ||||
| 6 | +0．5 | 50.1 | 48.4 | 48.1 |
| -0．6 | ||||
| 7 | 0.6 | 59 | 58 | 52.4 |
| -0．7 | ||||
| 8 | +0．6 | 66.8 | 65.8 | 56.2 |
| -0．8 | ||||
We supply a variety of steel plates, rods, bars and sheets.
Mild Steel Plates, Bars, and Sections
Mild Steel Plates
1.6 x 1500x3000 mm
3 x 1500x3000mm
4 x 1500 x 3000 mm
5x1800x6000 mm
32x 1250 x2500 mm
75x1250x2500 mm
Mild Steel Angles
3x25x25x6000 mm
4x40x40x6000 mm
6x50x50x6000rwn
6 x 50x 75 x 6000 mm
6 x 75 x 75 x 6000 mm
8x50x 100x6000 mm
8x75x100x6000 mm
7 x75x 125 x 6000mm
8 x 75x 125 x 6000 mm
10 x 75x125x6000 mm
Mild Steel H-Beam
10mm x 150mm x 150mm x 6000mm
Mild Steel Flat Bars
6x25x 6000 mm
6x32 x 6000 mm
6x40x6000 mm
6x50x6000 mm
6x100x6000 mm
Mild Steel Hot Roll Rods
16 mm Dia. x 6000 mm Length
19 mm Dia. x 6000 mm Length
23mm Dia. x 6000 mm Length
25 mm Dia. x 6000 mm Length
32 mm Dia. x 6000 mm Length
50 mm Dia. x 6000 mm Length
Mild Steel Solid Round Bars
30 mm Dia. x 6000 mm Length
50 mm Dia. x 6000 mm Length
75 mm Dia. X 6000mm Length
100 mm Dia. X 6000 mm Length
Mild Steel Square Rod
20 mm x 6000 mm Length
25mm x 6000 mm Length
Galvanized Mild Steel Sheet
0.6x 1250x2450 mm
0.8 x 1250 x2450 mm
Stainless Steel Rod
16 mm Dia.
20 mm Dia.
32 mm Dia.
38 mm Dia.
Stainless Structural Steel Pipe 80 Thick
Pip Standard Length of 6 M:
Size: 89.1 mm (O.D) x 7.6 mm
Size: 101.6 mm (O.D)x8.1 mm
Size: 114.3 mm (O.D) x 8.6 mm
Size: 139.8 mm (O.D) x 9.5 mm
Size: 216.3 mm (O.D) x 12.7 nun
Size 267.4 mm (O.D) x15.1mm
