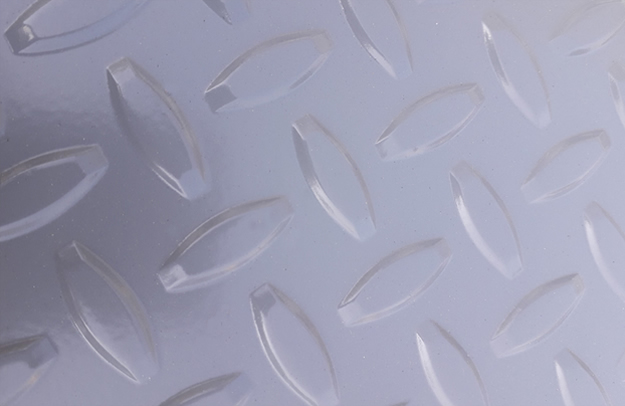

Durbar Checkered Floor Plate - aluminium, Stainless steel, galvanized - in thickness 2.5mm, 4.5mm, 6mm, 8mm, 12mm
Durbar plate is a term popularly used in the United Kingdom for referring to the chequered plate metals. It is called “ durbar” because the metal plates are often chequered into the pattern with double bar styles or multi bar styles. The durbar patterns give a slightly raised surface allowing walking through yet not causing slippery, making it an ideal flooring shank.

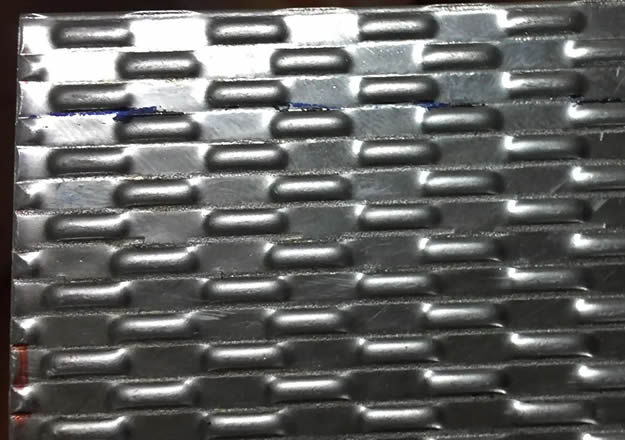

Karola is an expert Chinese supplier of chequer / durbar plate used as protection panels for cars and the tread plate for various uses. We have a vast range of durbar chequer plate available in 2 or 3mm thickness, a laser cut sheet within 0.3mm to ensure accuracy.
Uses: Featuring excellent resistance of corrosion, durbar checkered plate is mostly used as tread plate or metal floor plate of automobile, airplane, light rail, etc.

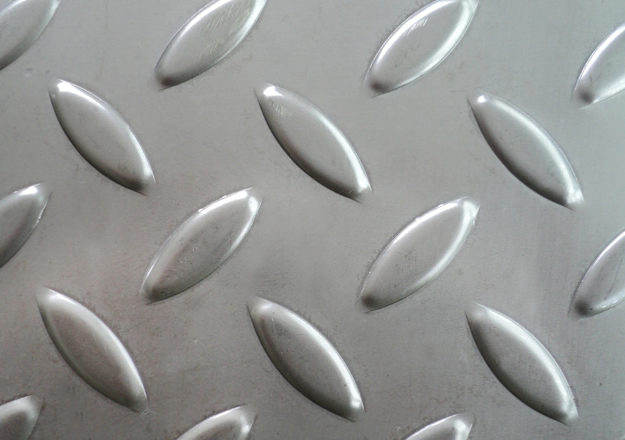

Chequer (durbar ) plate finishes: natural silver, anodised, or black
Materials: Aluminum, galvanized bright, hot dipped, black steel.
Chequered Patterns: Single bar, double bar or multi-bars.
Standard sizes:
Standard width for durbar floor plate: 1.25m
Standard followed: Chinese standard: GB/T3618-89
Specification: 1.0-5.0X1000-2400X1000-10000
Temper: H14, H24, H18, M
Plate Sheet Common Specification:
Thickness: 0.15mm--12mm
Width: 600mm--2000mm
Our standard and customized durbar chequered floor plates
We offer steel plate anti-slip chequered 8.0mm x 4 x 8 material: BS 4360: 1986 mild steel,
equivalent to durbar slip resisting raised pattern steel floor plate.
Durbar checkered floor steel plate with load capacities(kN/m2) with respect to different thickness of plates, chequer/tread/durbar plate in steel and aluminium 3 and 4mm base thickness, 2500 x 1250mm, popularly for trailer floor using
Durbar plate 12mm thick 2000mm x 1500mm
Durbar plate 2000x1000x 6mm
3m x 2.5m x 3mm aluminium durbar checker plate
Durbar steel floor plate 6mm / 8mm, 1200mm x 900mm painted red
3000 x 1250 x 4.5mm thick (6mm inc over pattern) 304 STST durbar
CHECKERED PLATE 6+2 EN 10025 DIN 59220 Quality S355
2000 x 2464 mm
2000 x 2964 mm
1232 x 2200 mm
1482 x 2200 mm
6.0mm Durbar Floor plate
Cutting size:
2.8m x 1.5m
2.8m x 1.09m
3m x 1.5m
Galvanised Checker Plate (Durbar) 2000 x 1000 x 5mm
Stainless steel chequer durbar plate 316L grade in sheet 4mm x 2.5 x 1.25
We supply durbar plate 8mm thickness Grade 355 as per the dimensions detailed in the table below
| Reference | Description | Length mm | Width mm |
| FP1 | 8PLT-S275JR | 2670 | 1035 |
| FP2 | 8PLT-S275JR | 2670 | 1035 |
| FP3 | 8PLT-S275JR | 2500 | 1000 |
| FP4 | 8PLT-S275JR | 2670 | 663 |
| FP5 | 8PLT-S275JR | 2670 | 663 |
| FP6 | 8PLT-S275JR | 750 | 1150 |
| FP7 | 8PLT-S275JR | 2670 | 672 |
| FP8 | 8PLT-S275JR | 2670 | 672 |
| FP9 | 8PLT-S275JR | 300 | 1150 |
| FP10 | 8PLT-S275JR | 2500 | 1415 |
| FP11 | 8PLT-S275JR | 2500 | 1415 |
Projects:
Aluminium Durbar Plate (6mm) for gantry and platform projects:
Aluminium durbar plate gantry
Aluminium durbarplate for typical platform construction floor plate
Photoes:
Mat: S355JR T4.5mm TREAD CHECKER DURBAR X 1700mm x 900mm
Sheet 2000mmx1000mmx2mm 1 bar Checker Plate/ Floor Plate/ Durbar in 316 stainless
Anti-Slip Pattern Aluminum Plate-5 Bar Durbar Plate 12.5mm thick 2m x 3m
Other raised anti slippery floor patterns:

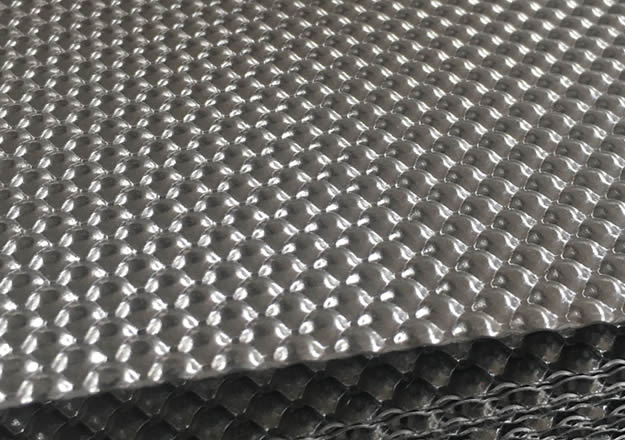

Semicircle - Embossed Steel Sheet
Aluminium checker plate can be used for car pedals
