Hot Dipped Galvanized Chequered Plate Nosing and Aluminum stair nosing - for Stair treads

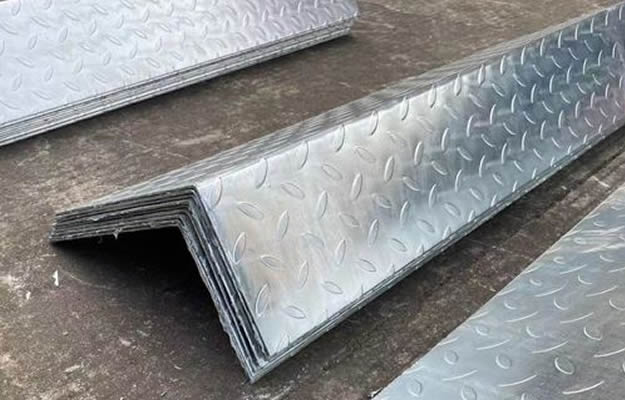

Chequered plate nosing is a bent diamond plate with certain angles to suit the tread plate edge covering for prevention of slip and fall accidents occurred to stairways in damp and slippery conditions. Tread grating flooring will become a safer walking way with added diamond chequer plate nosing or other slip-resisting metal nosings made of galvanized steel or aluminium stair nosing. Chequered metal stair nosing is popularly used in commercial buildings, residential, industrial, institutional, factories and schools to secure a safe tread and to prevent accidental fall.

Aluminum stair nosing made of chequered plate provides a light-weight, fast and permanent non-skidding, and non-corrosive surface for all types of stair surfaces.

Galvanized steel checkered plate nosing is an economic anti-skip tread edge surface used in oily or moisture conditions, the raised diamond chequers will significantly decrease slippery damage.

Angled chequered plate stair nosing technical information:
Material: aluminum, galvanized carbon steel
Nosing Width: 2”, 3” or 4”
Panel Depth: 1”, 2”
Length: 25”, 30”
Plate Thickness: 3mm, 5mm
Note: Special sizes are on special request.

Features of Chequered Metal as Non-slippery Protective Nosing:
Available in aluminum and galvanized carbon steel options.
Rigid and rough surface gives permanent protection.
No rust or corrosion even in harsh environment.
Self-cleaning.
Easy installation.
Flashy appearance adding decoration element to building.

Our standard and custom stair nosing products

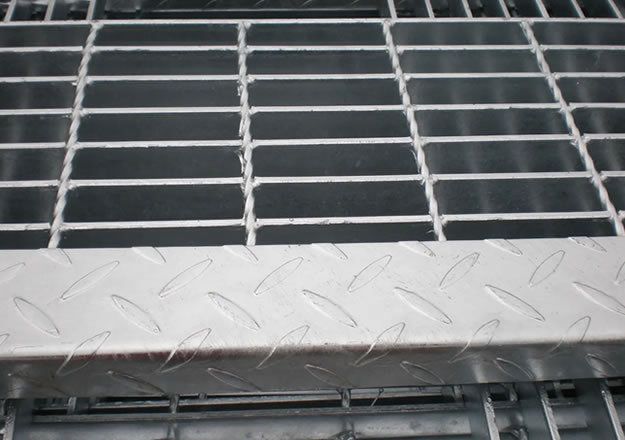

188 Aluminum Stair Treads, of aluminum grating with aluminum angle nosing

Aluminum stair tread plate 10 15/16” wide x 54” length c/w 1 ¾ “ x 3/16” , components:
Serrated rectangular bar aluminum grating, corrugated angle nosing and standard end plates

1mm-12mm Chequered Plate Nosing
Durbar 135nr nosings (1220x5x55mm)

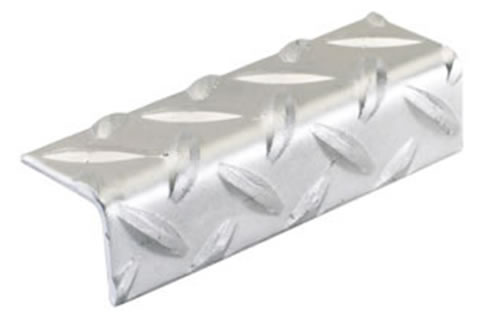

Aluminum checker plate nosing
Nosing width - 2"
Panel depth - 2"
Length - 25"
In 3mm size

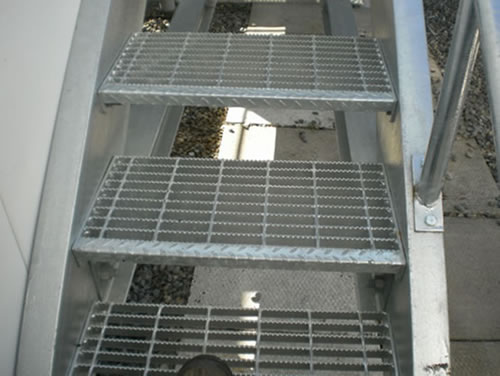

Hot Dipped Galvanized Steel Stair Treads

Component: Hot Dipped Galvanised Chequered Steel Diamond Plate as Stairs Nosing and Serrated steel bar grating as tread floor
Chequered plate nosing, galvanized steel, 1” x 1” angle shape, two of them at 24” length, two at 30” length
38mm x 38mm x 3mm thk Galvanized Carbon Steel Angular Steel Nosing.

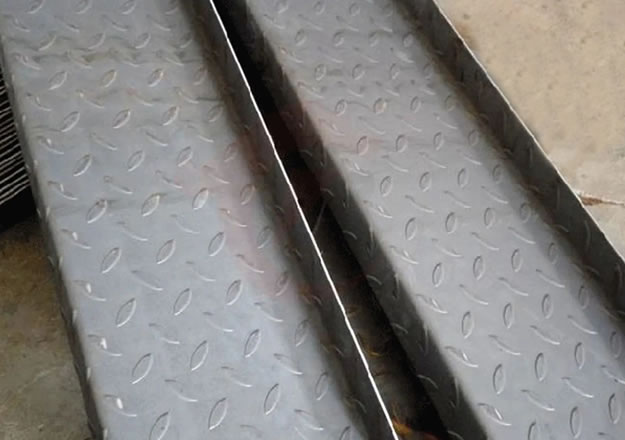

Nose Tread Checkered Plate Nosing

Material: Galvanized steel
Panel size: 2” x 2” x 30” x 5mm

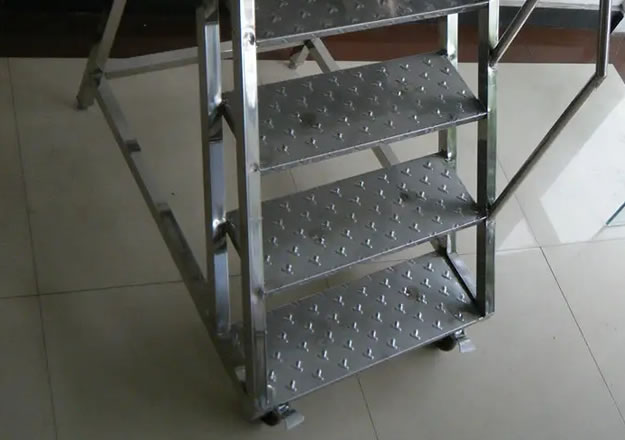

Steel Plate Climbing Ladder with T Embossed Pattern

Checker embossed plate stair nosing, 36" length 2" x 1" hot dipped galvanized.
