round hole perforated plates, stainless steel perforated sheets, Perforated Anti-Slip stair Tread Serrated, dimple tread plate

Perforated plate is processed in a wide range of round, square, slotted, decorative and special shaped perforations from a numerous metal sheets. Also known as Perforated Metal, Perforated Panel.

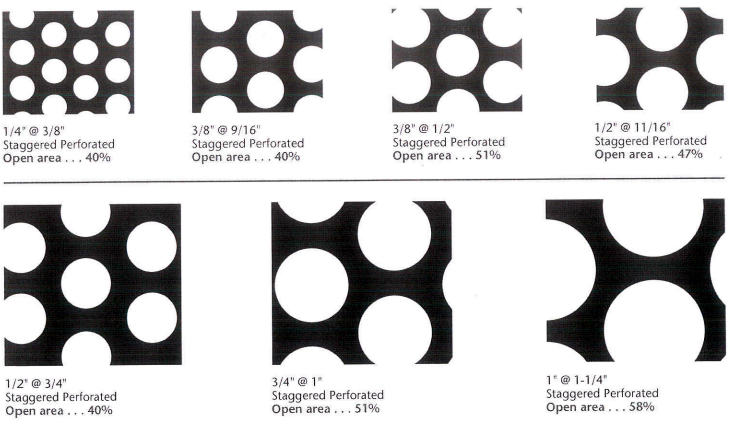

Percentage of Perforated Open Area:
The most common percentage of open area is between 30% and 50% while other open areas are available depending on the perforation. Some times the percentage open area has to be kept lower for increased strength and flatness of the perforated metal sheet. For perforations 30% usually comes with 5/16-inch diameter holes.

Metal Sheet Thickness for Perforation:
We can perforate metal sheet with a maximum sheet thickness of 25mm. Perforated sheet with a thickness between 1.5mm and 3.0mm finds common uses for balustrade infilling mesh and cladding panels.

standard and Customized perforated products

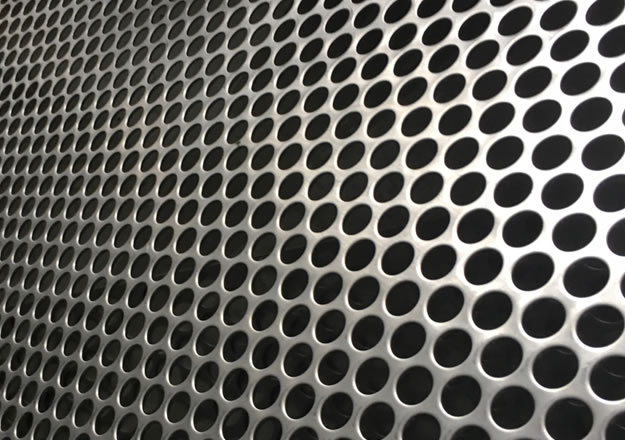

Round Hole MS Perforated Sheet

Sheet size: 2.4mx1.2mx2mm thickness, hole shape circular, hole size 7 mm, pitch space 25 mm.

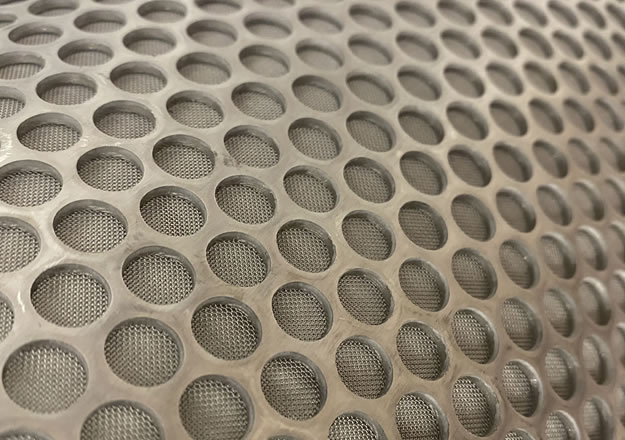

Stainless Steel Perforated Plates

SS 316 perforated horizontal plates with the following specification
Diameter : 250 mm
Length: 2.3m
Perforated hole diameter: 8 mm
Open area: 65% to 75%

Perforated plates SS304L 5/16” thickness (1/2 Diameter holes, 11/16” Center to Center Staggered).

Perforated stainless steel plate with 10.0 mm dia. holes and 39-40% open area.
Nominal dimensions 20"x4", with punched (not drilled) holes. 3.0 mm (.118") thick.

Stainless Steel Hot Rolled Plate grade 316L
2500 x 1250 x 10mm thick
perforated with 12mm dia holes @ 24mm centres.
Also 3000x 1500 x 10mm
Perforated with 12mm dia holes@ 24mm centres.

2.5mm perforated plate, in 304 stainless steel, 2mm holes and 5mm staggered pitch.
Standard sheet size.

Perforated plate SUS 304 hole diameter 5mm, pitch 8mm, thickness 4mm, plate size 1219mm x 2438mm
Perforated ceilings panels in round holes and other patterns
Aluminum perforated ceiling panels
Perforated Acoustic Panel with Insulation Backing
Perforated Ceiling for roof decoration 22 3/4x 22 3/4

Aluminum Perforated Panel Screen

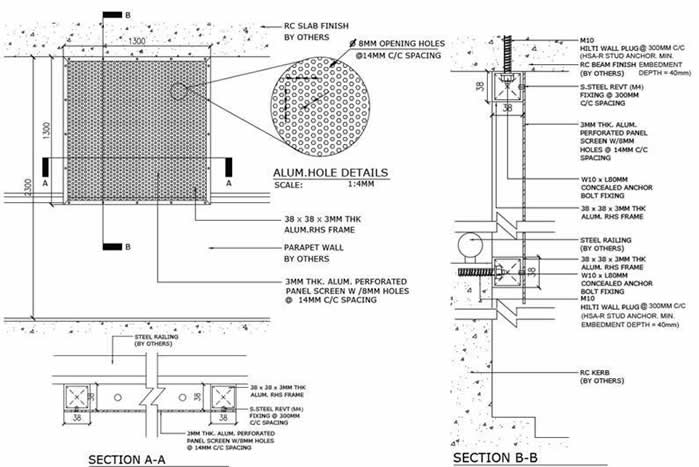

Installation:
The pattern of perforation as indicated in the drawings. No self-tapping screws nor rivets to be used. Self-drilling screw shall be stainless steel of grade 316 and comply to BS EN 3506.

Powder Coated Aluminium Perforated Panel Fixed To The Corridor Ceiling (Slab) and concrete Parapet Wall

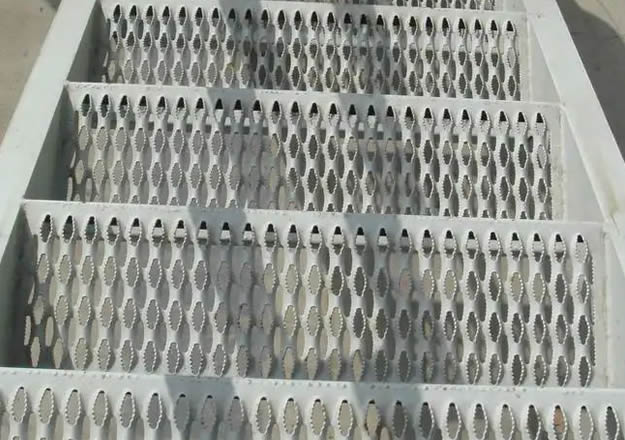

Perforated Metal Stair Treads with Serrated Edging
Perforated steel stair treads is a non slip tread plate ideal for onshore and offshore stair and plank grating with serrated edging. Perforated stair treads can be used in two ways:
To be added to the stair nosing, or
To be used as cover of non slip tread plates for the existing step.

Heavy duty galvanized steel perforated sheet for plank grating

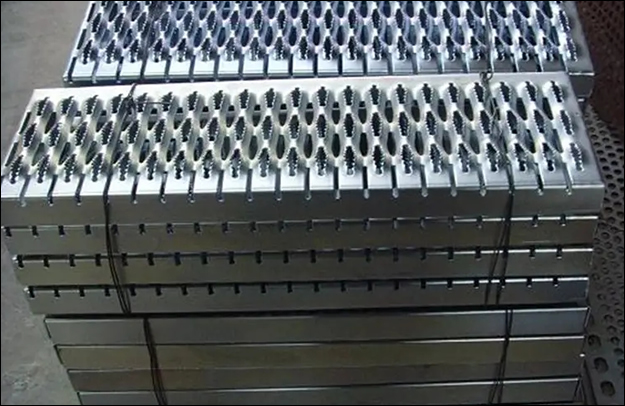

Light duty serrated perforated stair tread

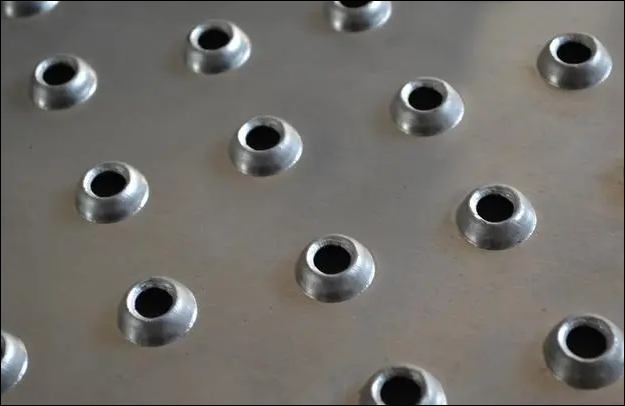

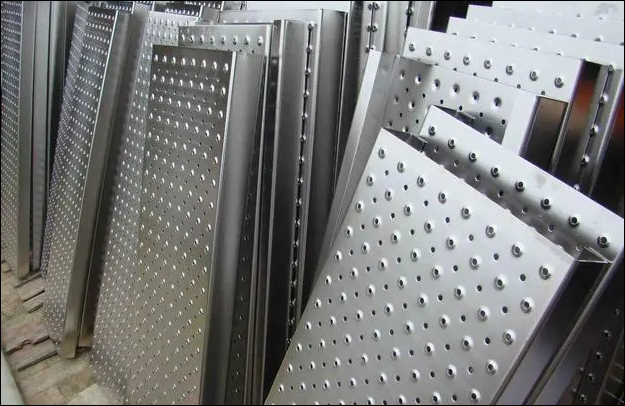

Raised round hole perforated steel plate for Non-Slip Flooring - Dimple Pattern
2.5m x 1.5m x 1.2mm Perforated Galv Plate, Hole size: 10mm, safety treads, ladder grating

Perforated tread plate used on the side steps for vehicle, tracks, approx. 90mm by 1695mm.

Perforated Checkered Plates

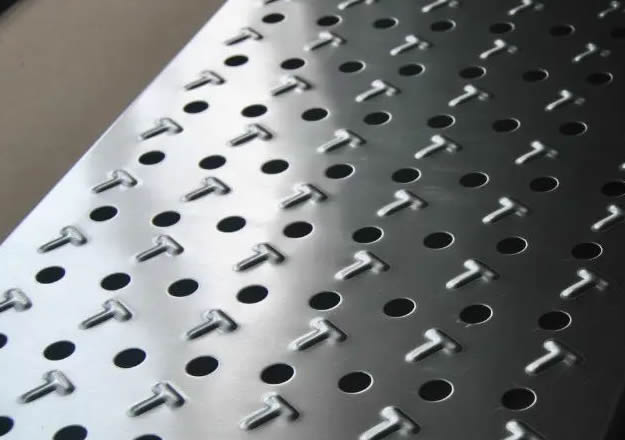

Perforated and checkered plate: Perforated metal screen with a combination pattern of T chequer and round hole perforation

Perforated Checkered Patterns:

1, Diamond Checkered Plates

2, 5 Bar Checker Plate Pattern

3. T Pattern

Process: Steel types are normally made by hot rolling, and then make a raised and pressed with pattern designs.

Application and Feature: Chequered plate perforated metal has an aesthetic quality and helps reduce the risk of slipping. For this reason, Chequered plate is frequently used on the stair treads, the interior of ambulances and on the floorplate of firetrucks. Checker plate is widely used in decoration, shipbuilding and architectural applications.fabricate mezzanine floor around with SS checker plate

Anti-skid checker plate round hole, building construction bump anti-skid plate, punched embossed checker plate
