aluminium tread plates - Aluminium 6082 Treadplate, 6061 Grade Black Anodized Aluminium Tread Plate, Embossed Tread Plate 3003 1/8'' x 60" x 120"
Aluminium Tread Plate refers to aluminum plate checkered or embossed in surface for safety treads and flooring uses.
Patterns: Five bar, six bar, two bar, and one bar diamond patterns.
Aluminum Tread Plate Materials
Tread plates are manufactured from selected 1000, 3000 and 5000 series alloys, mainly 3003, 5052, 5251, and 6061, 6082 grade.
Aluminum plates are in general nonsparking, corrosion resistant, and nonmagnetic.
Tread plates in 3003 aluminum grade offer a shiner surface and popular material for decorative metal working. 6061 aluminum is less corrosion resistant comparing to 3003 grade, but it is stronger and suitable for stair treads. 6082 aluminum alloy plate is also strong, ideal for flooring uses.
We supply standard and customized aluminum treadplates products
We produce aluminum tread plate with standard dimensions and customised tread plates according to the customer’s dimensions. Following listed quality standard for references:
EN 573-3 Aluminium and aluminium alloys – Chemical composition and form of wrought products
EN 1386 Aluminium and aluminium alloys – Sheets with embossed patterns – Specifications
EN 15088 Aluminium and aluminium alloys – Structural products for construction work

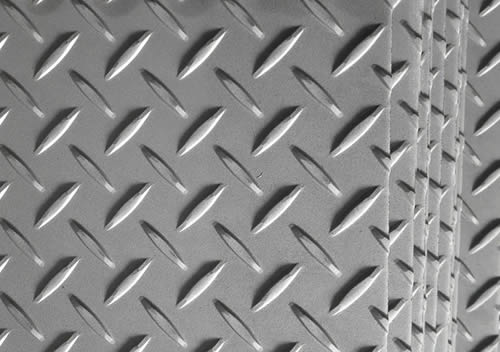

Aluminium Tread Plate - Aluminum 6082 Floor Plate
Material: Aluminium 6082 Treadplate (PLATE, FLOOR, METAL; TREADPLATE; ALUMINIUM ALLOY; ROLLED)
Specification: DEF STAN 02-740 – Issue 2
Size: 910.00MM WIDTH; 5.600MM THICKNESS; 3.200MM BASE THICKNESS; 3600.00MM LENGTH; 10.28KG/SQ METRE WEIGHT APPROX
Size: 910.00MM WIDTH; 8.800MM THICKNESS; 6.400MM BASE THICKNESS; 3600.00MM LENGTH; 18.95KG/SQ METRE WEIGHT APPROX
Aluminium Alloy EN AW-6082/T6 (EN AW-Al Si1 Mg Mn) Tread Plate
Aluminum Tread Plates specifications
The chemical composition of the material is to comply with the requirements in BS EN 573-3 for material designation EN AW-6082 (EN AW-Al Si1 Mg Mn).
Plates are to be supplied in the T6 condition (solution heat-treated and then artificially aged) to BS EN 515.
Size: 3600 x 910x3.2 MM
Alternate Size : 2500 x 1200 x 3.2 MM
Aluminium Tread Plate Specifications
| Item Description | Product Name | Product Details | Density |
| 810-36-56 PLATE, FLOOR, METAL |
FLOOR PLATE, ALUMINIUM ALLOY, ROLLED |
Treadplates Nominal dimensions: Width 810.0 mm Length 3.6 m Cross-sectional thickness 5.6 mm Base thickness 3.2 mm |
10.28 kg/m2 |
910-36-88 |
FLOOR PLATE,
|
Treadplates Width 910.0 mm |
18.95 kg/m2 |
45-55 |
FLOOR PLATE, |
Treadstrips |
0.52 kg per metre length |

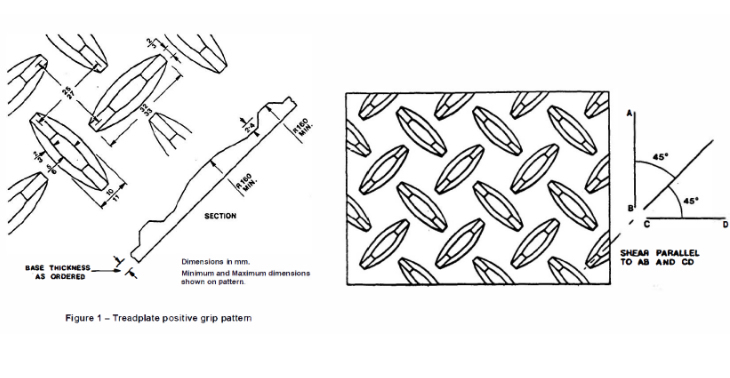

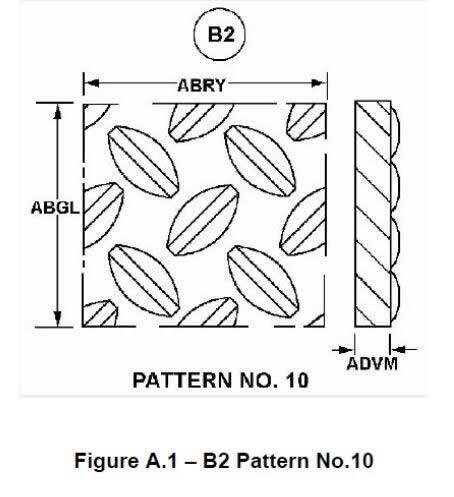

Pattern reference:
Physical Characteristics
1 Chemical Composition
Material used for production of treadplates and treadstrip is to meet the requirements for chemical composition specified in BS EN 573-3 for material designation EN AW-6082 (EN AW-Al Si1 Mg Mn).
2 Material Condition
a) Unless otherwise specified on the order or contract, plates and strips are to be supplied in the T6 condition (solution heat-treated and then artificially aged) to BS EN 515.

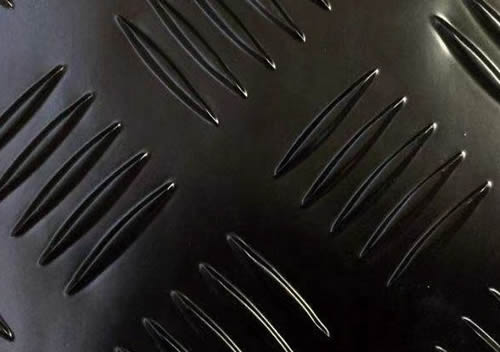

Black Anodized Aluminium Checkered Tread Plate
Aluminium chequered/tread plate
Grade : 6061
Thickness : 1.5mm
Size : 4FT x 8FT
Black Anodized
Marine Grade Aluminum Tread Plate Sheet for Dock Flooring
Aluminum Diamond Sheet for Anti-Slip Floor
Unique pattern with small, individual blocks of five parallel bars oriented perpendicularly
Embossed Tread Plate 3003 1/8'' x 60" x 120" or 60" x 144"
.125 x 72” x 156” sheeted aluminum tread plate
H34 hardness (in 5052, 5251, 3003 or similar) aluminium tread plate
3mm Grade H34 or similar aluminium tread plate, a yield strength of circa 180Mpa+, for trailer flooring plate.
Aluminum Tread Plate 5052, Sheet Size 3 x 605 x 1215, 3 x 1200 x 1218

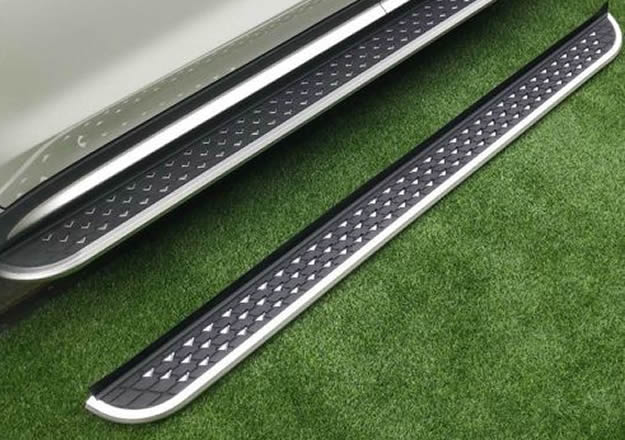

Aluminum alloy 5251 aluminum tread plate for cars, supplied in size 1200 mm. x 2400 mm and other sizes.
