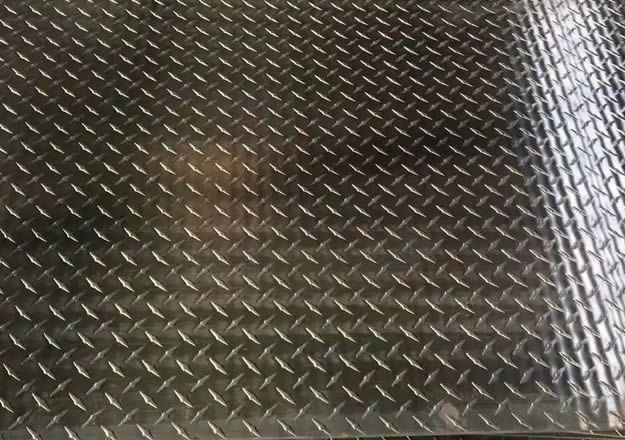

Diamond Pattern Steel Floor Plate, Diamond Plate Flooring - EN, CE and ASTM international standards.

Diamond plate flooring is a kind of traction floor plate made of one bar checkered plate in diamond pattern. Diamond Plate, also known as Tread Plate or Floor Plate, provides outstanding slip resistance to wheels and shoes when used to cover the base structural sheets.

Checkered steel diamond plate is processed from hot rolled steel material ideal for heavy duty floorings and safety treads and has a high resistance to corrosion and weathering.

Material: Industrial flooring checkered plate is available in steel, stainless steel or aluminum.

Technology: Hot rolled ( DC ), cold rolling ( CC ), cast
Pattern: Diamond
Type: plate, roll ( coil )
Width: 900mm - 1600mm
Length: 800mm - 8000mm
Thickness: 0.8mm - 10mm
Standard: ASTM B209, EN AW, DIN, MSRR, AMS, JIS, AISI, BS, etc.

Diamond plate surface types: Mill plain or polished bright

Mill finish:

Polished bright:

Diamond Floor Plate Details:
Gauge Thickness: .059" to .375"
Width: Up to 72"
Standards: ASTM 786
Grades: CQ, A36 High Strength and Grade 50
Source: Strip Mill Coil

Application
Diamond Plate Flooring is popularly used in trailer floor, bus floor, factory toolbox, step floor, the flooring of scaffold, stairs and catwalks in industrial settings.

Mild Steel Diamond Floor Plate

Diamond steel floor plate with a raised surface provides excellent traction, ductility, durability, slipping and skid resistance.

Diamond floor plate, for the interior flooring of ambulances, sheet size 4500 X 2230 X 5.00 mm
Checkers size: 35 mm x 5 mm
Checker spacing 8 mm.

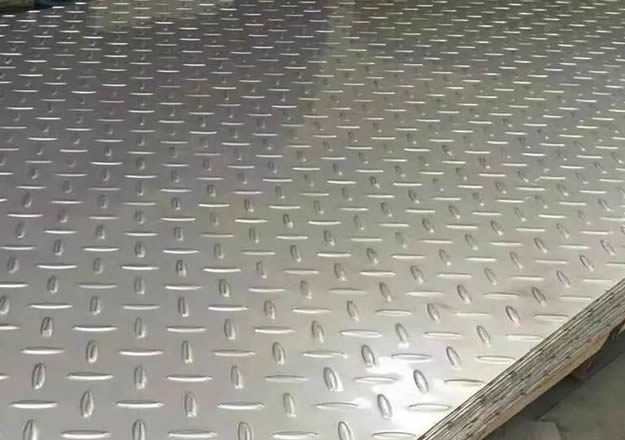

Aluminum Diamond Plate Flooring

Light weight, corrosion resistance aluminum checkered diamond plate used in trailer flooring and stairs, also used for architectural decoration panels.
